Description

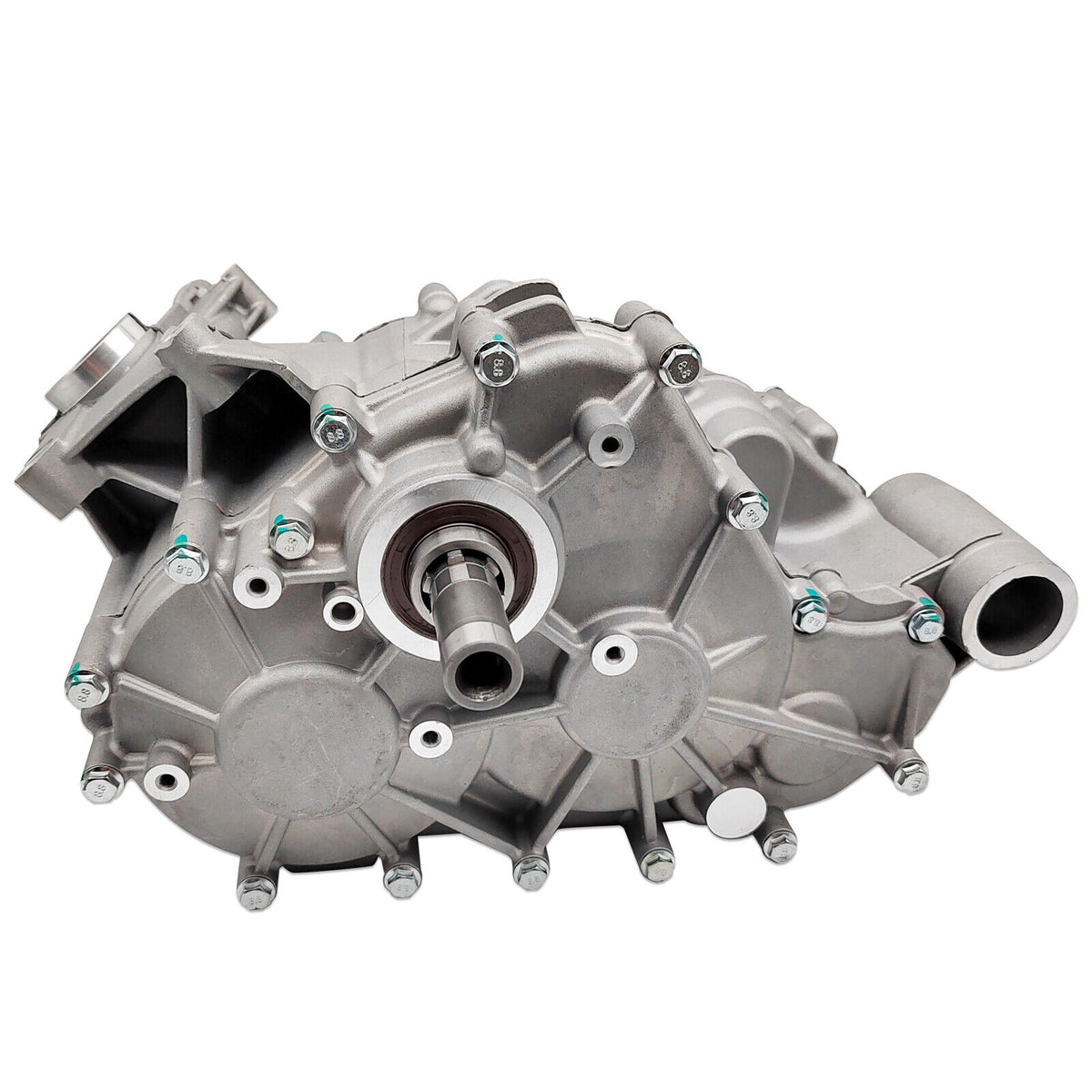

can gear Can Am Large Gear BoxPerformance upgrade item All "Spartan Series" drivetrain required to run recommended fluid Our gear box selector is designed to let you choose the OEM part number and have us match it with a premium version. This premium gear box replaces the OEM transmission with the highest quality gear box on the market. FITMENT Can Am (420686654 6x6 XMR 28% Low 14% High Gear Reduction) High Gear Ratio 3. 691 Low Gear Ratio 7. 51 Reverse Gear Ratio 7. 863 2018
- Performance upgrade item
- All "Spartan Series" drivetrain required to run recommended fluid
Our gear box selector is designed to let you choose the OEM part number and have us match it with a premium version. This premium gear box replaces the OEM transmission with the highest quality gear box on the market.
FITMENT
Can-Am (420686654 6x6/XMR/28% Low 14% High Gear Reduction)
High Gear Ratio 3.691
Low Gear Ratio 7.51
Reverse Gear Ratio 7.863
- 2018 Maverick, Maverick Max, Maverick XMR
- 2018 Outlander 1000R
- 2018 Outlander 650 (INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
- 2018 Outlander Max 650 (INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
- 2018 Outlander Max 1000R (INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
- 2019 Commander Max 1000R
- 2019 Commander Max 800R
Can-Am (420686211)
High Gear Ratio 3.691
Low Gear Ratio 5.842
Reverse Gear Ratio 7.148
- 2014 Maverick 1000 XMR
Can-Am (420686212 1000 XMR 14% Low Standard High Gear Reduction)
High Gear Ratio 3.691
Low Gear Ratio 5.952
Reverse Gear Ratio 7.148
- 2018 Outlander 1000R, 1000R XMR
- 2018 Outlander 650 (INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
- 2018 Outlander Max 650 (INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
- 2018 Outlander Max 1000R (INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
- 2018 Renegade 1000R
Can-Am (420686214 1000)
High Gear Ratio TBD
Low Gear Ratio TBD
Reverse Gear Ratio TBD
- 2018 Outlander 570, 650
- 2019 Outlander 570, 650, 1000
- 2020 Outlander 570, 650, 850, 1000
- 2021 Outlander 570, 650, 850, 1000
- 2019 Renegade 1000 XMR
- 2020 Renegade 1000 XMR
- 2021 Renegade 1000 XMR
Can-Am (420685808)
High Gear Ratio 2.829
Low Gear Ratio 6.826
Reverse Gear Ratio 7.148
- 2016 Renegade (EXCEPT XMR)
- 2017 Renegade STD, XXC
- 2018 Outlander 1000R
- 2018 Outlander Max 1000R (INCLUDING T3 OLD EU REGULATION - BUILT BEFORE NOV 2017)
- 2018 Outlander 850
- 2018 Outlander Max 850
- 2018 Renegade 1000R
Can-Am (420684783)
High Gear Ratio 3.364
Low Gear Ratio 5.842
Reverse Gear Ratio 7.148
- 2013 Commander 800R STD, DPS, XT
- 2014 Maverick 1000, STD, XRS, XXC, DPS
- 2014 Maverick Max 1000, STD, XRS, XRS
- 2016 Commander, Commander Max
- 2016 Maverick, Maverick Max
- 2017 Commander, Commander Max
- 2017 Maverick, Maverick Max, XMR
Can-Am (420685804)
High Gear Ratio 2.829
Low Gear Ratio 5.842
Reverse Gear Ratio 7.148
- 2013 Outlander 1000, DPS, XT, XT-P
- 2013 Outlander Max 1000, LTD, DPS, XT, XT-P
- 2013 Renegade 1000, STD, XXC
- 2014 Outlander 1000, DPS, XT, XT-P
- 2014 Outlander Max 1000, LTD, DPS, XT, XT-P
- 2014 Renegade 1000 STD, XXC
- 2015 Renegade 1000
Can-Am (420686568)
High Gear Ratio TBD
Low Gear Ratio TBD
Reverse Gear Ratio TBD
- 2019 Outlander 1000R, XXC
- 2019 Outlander 850
- 2019 Outlander Max 850
- 2019 Renegade 1000R, XXC
- 2020 Outlander 1000R, XT, XTP, XXC
- 2020 Renegade 1000R, XXC
- 2021 Outlander 850, STD, DPS, XT, XTP
- 2021 Outlander Max 850, XT, XTP
- 2021 Outlander 1000R, XT, XTP, XXC
- 2021 Renegade 1000R, XXC
Can-Am (420686650)
High Gear Ratio TBD
Low Gear Ratio TBD
Reverse Gear Ratio TBD
- 2018 Commander 1000R
- 2018 Commander 800R
- 2018 Maverick
- 2018 Maverick Max
- 2019 Commander 1000R
- 2019 Commander 800R
Can-Am (420686392)
High Gear Ratio 3.364
Low Gear Ratio 5.842
Reverse Gear Ratio 7.148
- 2015 Maverick XDS Turbo
- 2016 Maverick XDS Turbo
- 2017 Maverick XDS Turbo
*Please verify fitment with OEM parts diagram
View similar item(s) for Can Am Small Gear Box and Can Am Transaxle Gear Box.
INCLUDES
Item
- Transmission - QTY 1
DETAILS
Shipping
- Box Dimensions: 16x16x16
- Weight: 60.00 lbs.
